DIN rail power supply 240W NDR-240-48


MEAN WELL

Mean Well is a renowned manufacturer of power supplies that has been providing high-quality and reliable products since 1982. Known for its wide range of LED, industrial and electronic power supplies, Mean Well is recognized around the world. The company offers over 9,000 models of power supplies that are covered by a long warranty period, which proves their durability and reliability. Mean Well cooperates with various industries, providing stable and safe power solutions that meet high customer requirements.


Description of the power supply:

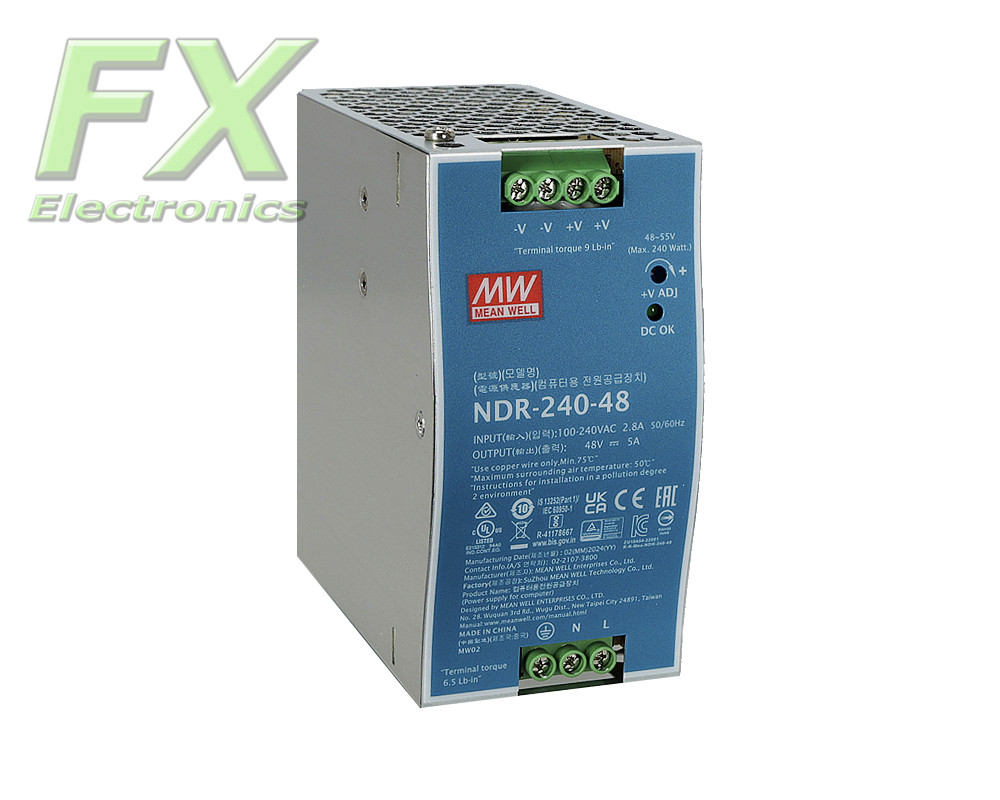

The NDR-240-48 power supply from Mean Well is an economical device designed for mounting on a DIN rail, which provides an output voltage of 48V at a current of up to 5A. It is characterized by high efficiency up to 89% and a wide supply voltage range from 90 to 264VAC or 124 to 370VDC. The power supply has short-circuit, overload, overvoltage and thermal protection, which ensures safe and stable operation. LED operation indication and the possibility of cooling with open air circulation are additional advantages of this model. The device can operate at temperatures from -20 to +70°C, which makes it suitable for use in various environmental conditions.


NDR-240 series description:

The NDR-240 series from Mean Well are economical, slim 240W DIN rail power supplies that can be mounted on TS-35/7.5 rails or TS-35/15. These power supplies are only 63mm wide, which saves space in control cabinets. The entire series accepts the full input voltage range from 90VAC to 264VAC and complies with the EN61000-3-2 standard. NDR-240 power supplies offer an output voltage of 24V or 48V with the option of regulation and an output current of 10A or 5A. They also have protection against overload, overvoltage and overheating, which ensures their reliability in difficult industrial conditions. Additionally, the NDR-240 series is characterized by high efficiency, which translates into energy savings and reduced operating costs.


Main features of the power supply:

• Universal AC input/full range

• Built-in active PFC

• Protections: short circuit/overload/overvoltage

  < /li>

• Excess temperature

• Cooling by free air convection

• Can be mounted on a DIN TS rail -35/7.5 or 15

• Approved to UL 508 (Industrial Control Equipment).

• BS EN/ EN61000-6-2(BS EN/EN50082-2) industrial resistance level

• Burn-in test at 100% full load

•  3 years warranty

Application:

Industrial automation: The NDR-240 power supply is often used in industrial automation systems to power PLC controllers, sensors, actuators and other control devices, thanks to high reliability and overload protection. Machine control systems: Used in production machines, NDR-240 provides stable power supply, which is crucial to ensure the continuous operation of CNC machines, industrial robots, and other devices requiring precise control .Electrotechnical installations: Ideal for installation in switchboards and power supply switchboards, where power supplies with a narrow design for mounting on a DIN rail are required. Its compact design allows you to save space. Monitoring and security systems: NDR-240 can power cameras, DVR recorders, alarm systems and other devices related to monitoring and protection of facilities. LED lighting systems: Works well in lighting systems, especially in large LED installations , where high power and voltage stability are required.Telecommunications and computer networks: Can power network devices such as routers, switches, and other devices requiring stable power supply in data centers and access points.Energy and emergency power systems: Used in UPS systems, battery chargers and photovoltaic installations to provide reliable power. Railway and transport applications: Thanks to its wide operating temperature range and resistance to vibration, NDR-240 is used in railway systems, trams and other public transport vehicles.

< h2>Specification:

< /tr>< /tr>

3-year warranty
