MEAN WELL power supplies are high-quality, completely reliable power sources. The Mean Well brand is a global manufacturer with over 10,000 models of power supplies in its offer. These are constant-voltage, constant-current, hermetic, mounting, DIN rail and medical power supplies. The Mean Well brand was founded in 1982 and is currently the 4th largest manufacturer of power supplies in the world.

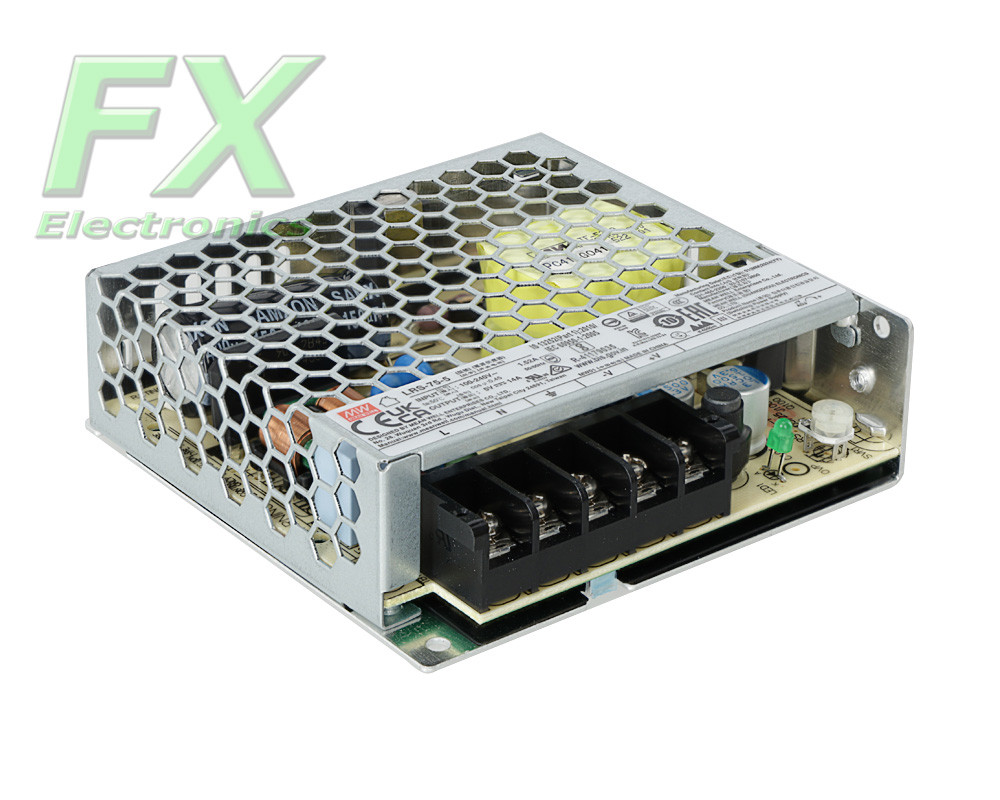

The MEAN WELL LRS-75-5 power supply is a single-output, 75W switching power supply with a low profile that accepts the full input voltage range from 85 to 264VAC. The whole series supplies 5V, 12V, 15V, 24V, 36V and 48V output voltage line. It is characterized by high efficiency up to 91% and vibration resistance up to 5G. It is a solution designed for various industrial applications, ensuring reliability and long service life.
The LRS series of power supplies from MEAN WELL is a line of high-performance and reliable products designed for a variety of industrial and home applications. These power supplies are characterized by a low profile, a wide range of output voltages and resistance to difficult operating conditions, such as vibrations and extreme temperatures. With its fanless design, the LRS Series ensures quiet and energy-efficient operation and is equipped with multiple protections, including protection against overvoltage, overload and short circuit. This is an ideal solution for automation systems, LED lighting, telecommunications equipment and other electronic devices requiring a stable power source.
Output power: 75W
Input voltage: 85~264Vac
Output voltage: 5Vdc
Output current: 14A
High efficiency up to 91%
Low profile, 30mm high
Vibration resistance up to 5G
Operating in a wide temperature range
Low energy consumption in no-load state
Cooling by air convection
The LRS-75-5 power supply by MEAN WELL is an electronic device designed to convert AC mains voltage into stabilized DC voltage.
It is a model of a switching power supply with a power of 75W and an output voltage of 5V, capable of supplying a maximum current of up to 12A .
It is used in industry and in advanced hobby projects where stable power supply for various types of electrical circuits and components is required.
The design based on impulse technology allows for high energy efficiency and minimization of heat losses, which allows work without large radiators or cooling fans.
The power supply housing made of steel elements provides good protection and durability.
LRS series power supplies are often used in industrial automation systems, LED lighting, telecommunications and IT.
They have many protective functions such as protection against overvoltage, overload, short circuit and overheating.
They comply with international safety standards and environmental protection regulations.
By adjusting the output voltage, it is possible to dim the LED strip or reduce voltage drops on the cable powering the receiver.
Output voltage: |
5V |
Output power: |
75W |
MAX output current: |
14A |
Waterproof rating: |
IP20 |
Output voltage regulation: |
4.5 ~ 5.5V |
Input voltage: |
85 ~ 264VAC |
Operating temperature: |
-30 - +70°C |
Overload protection: |
Yes (Hiccup) |
Surge protection: |
Yes (Hold & Restart) |
Security Certifications: |
UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,GB 4943.1, |
Model: |
LRS-75-5 |
Dimensions: |
99x97x30mm |
Weight: |
250g |
