NC+ LED module 1W 12V 4500K

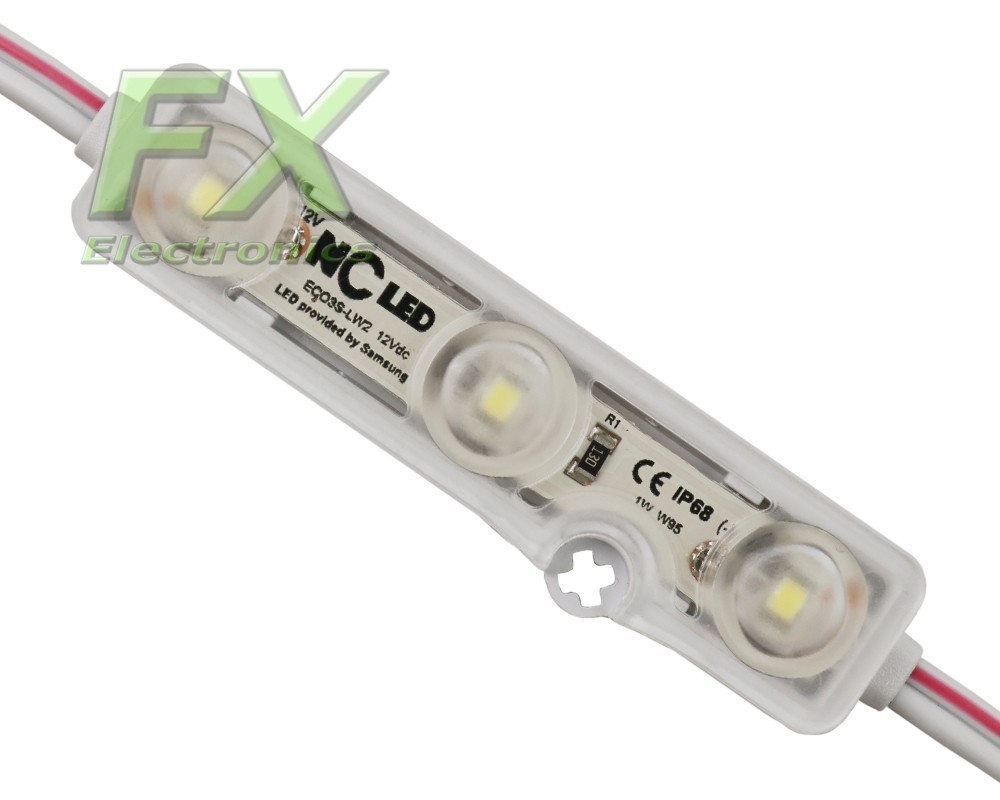

SAMSUNG NC+ 1W 12V LED Module

The Samsung NC LENS is a universal LED module designed specifically for illuminating advertising boxes and block letters with a depth of 80-200mm. It combines the highest quality Samsung LEDs with excellent durability and resistance to outdoor conditions, ensuring effective and reliable lighting in professional advertising applications.

SAMSUNG NC+ Module Description

The module operates at 12V DC and draws 1W (83mA). High-efficiency Samsung 2835 LEDs and carefully designed optics allow for a wide light output (93lm) with an efficacy of 93lm/W. A wide 140° beam angle ensures even and bright illumination, even over large areas. The hermetic housing with IP68 protection class protects the electronics from water and dust, and the constant current driver system stabilizes the light regardless of the string length. The module has compact dimensions of 66x15x11mm and allows for flexible installation in modular chains (up to 50 pcs in a row).

Main features

• Power: 1W / 83mA
• Power supply voltage: 12V DC
• Luminous flux: 93lm
• Luminous efficacy: 93lm/W
• Beam angle: 140°
• Light color: 4000K, 6500K, 9500K
• Chip: Samsung 2835
• Dimensions: 66 x 15 x 11mm
• Protection rating: IP68 (full waterproof)
• Duration: 50,000h
• Module spacing: 161mm
• Maximum quantity in a chain: 50 pieces
• Operating temperature: -20°C to +50°C
• Current stabilization: yes (constant current driver)
• Warranty: 5 years
• Certificate: CE

Application

The Samsung NC LENS is dedicated to illuminating advertising boxes, block letters, logos, and other visual identification elements with a depth of 80–200mm. Thanks to its wide beam angle and high IP68 resistance, the module is perfect for both indoor and outdoor installations, where durability, light uniformity, and complete tightness are required even in the harshest environmental conditions.

Specifications:

Protection period  5 years

Frequently asked questions:

What light boxes is the Samsung 1W NC LENS module intended for?

The module is dedicated to advertising light boxes and block letters with a depth of 80–200mm.

Does the module have current stabilization?

Yes, the built-in constant current driver stabilizes the light throughout the entire module chain.

What applications are they for? Is this module recommended?

It is an ideal solution for illuminating advertising panels, block letters, 3D logos, and other visual identification elements requiring a wide viewing angle and high resistance to outdoor conditions.
